Excellence in bevel and edge finishing
Straight-line beveling machine that combines excellent beveling and edge finishing of the glass: designed for uncompromising quality.

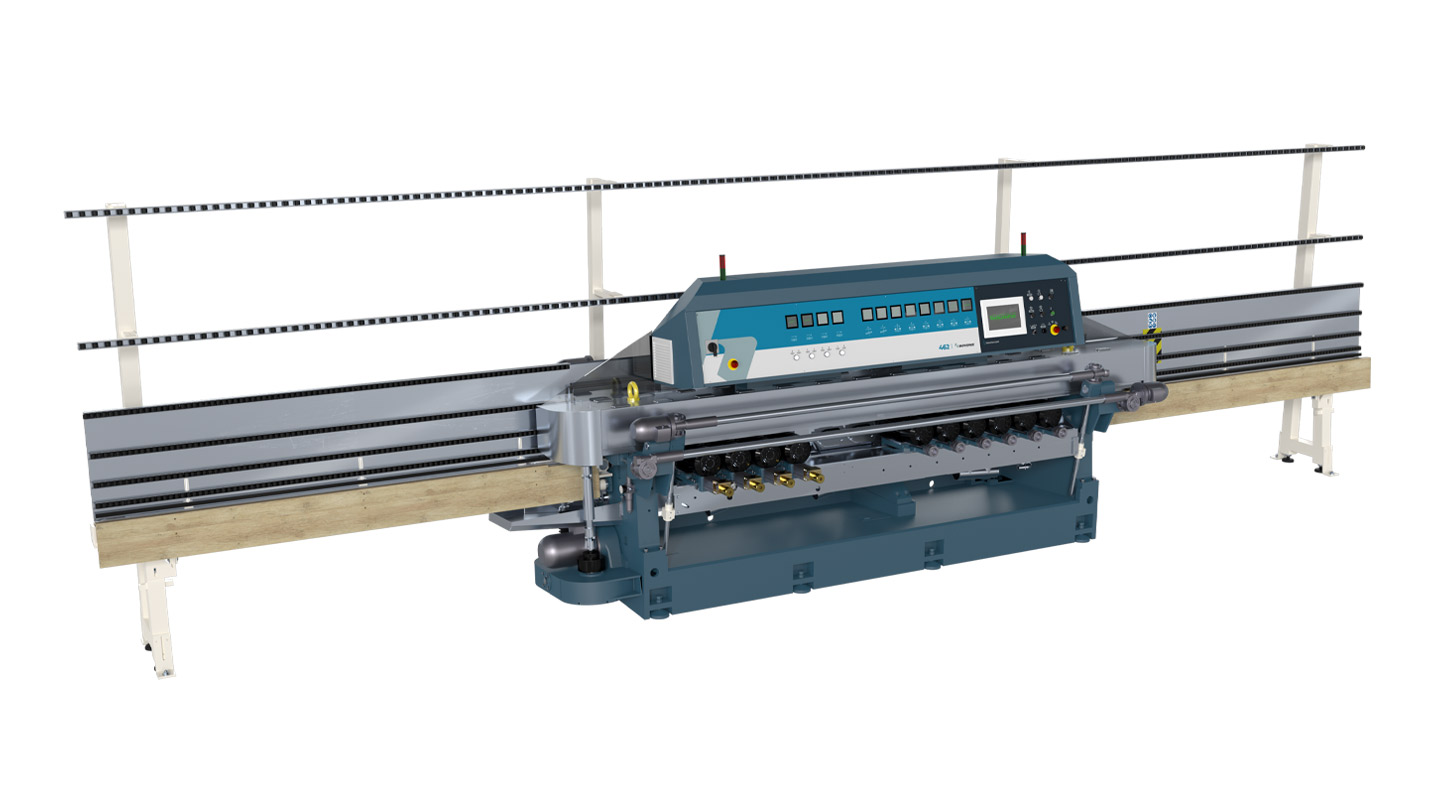

The 462 straight-line beveling machine is designed to obtain excellent quality in beveling and pencil edge grinding.
The addition, in fact, of a second peripherical grinding wheel for pencil edge polishing makes it possible to obtain finishes with very high quality standards: for those productions that do not want to compromise on quality.
The construction characteristics make it a machine born to last: the sturdy cast iron basement gives it great solidity – a feature that favors this machine in the precision of the bevel.
The handling of the glass is entrusted to tracks capable of “gripping” the glass with great firmness to add precision to the processing in terms of polish and flatness of the bevel.
Technical features
| SPEED [m/min] | ARRIS WIDTH [mm] | MINIMUN SIZE [mm] | THICKNESS [mm] | ELECTRICAL POWER 400V 50Hz | DIMENSIONS LxWxH [mm] | WEIGHT [Kg] |
|---|---|---|---|---|---|---|
| 0,35 - 5,4 (OPT. 10) | - | 50 x 50 | 3÷25 | 28kW 68A | 8200 x 1300 x 2200 | 4900 |
