The 45° edge grinding machine. The ideal machine for preparing edges that must be joined by gluing.
The 45° edge grinding machine. The ideal machine for preparing edges that must be joined by gluing.
This machine is the indispensable tool for processing the 45° edge, functional for subsequent gluing:
ideal therefore for the construction of kitchen tops and for finishing the edge of splashbacks, skirting boards and pieces of minimum height – up to 30 mm.

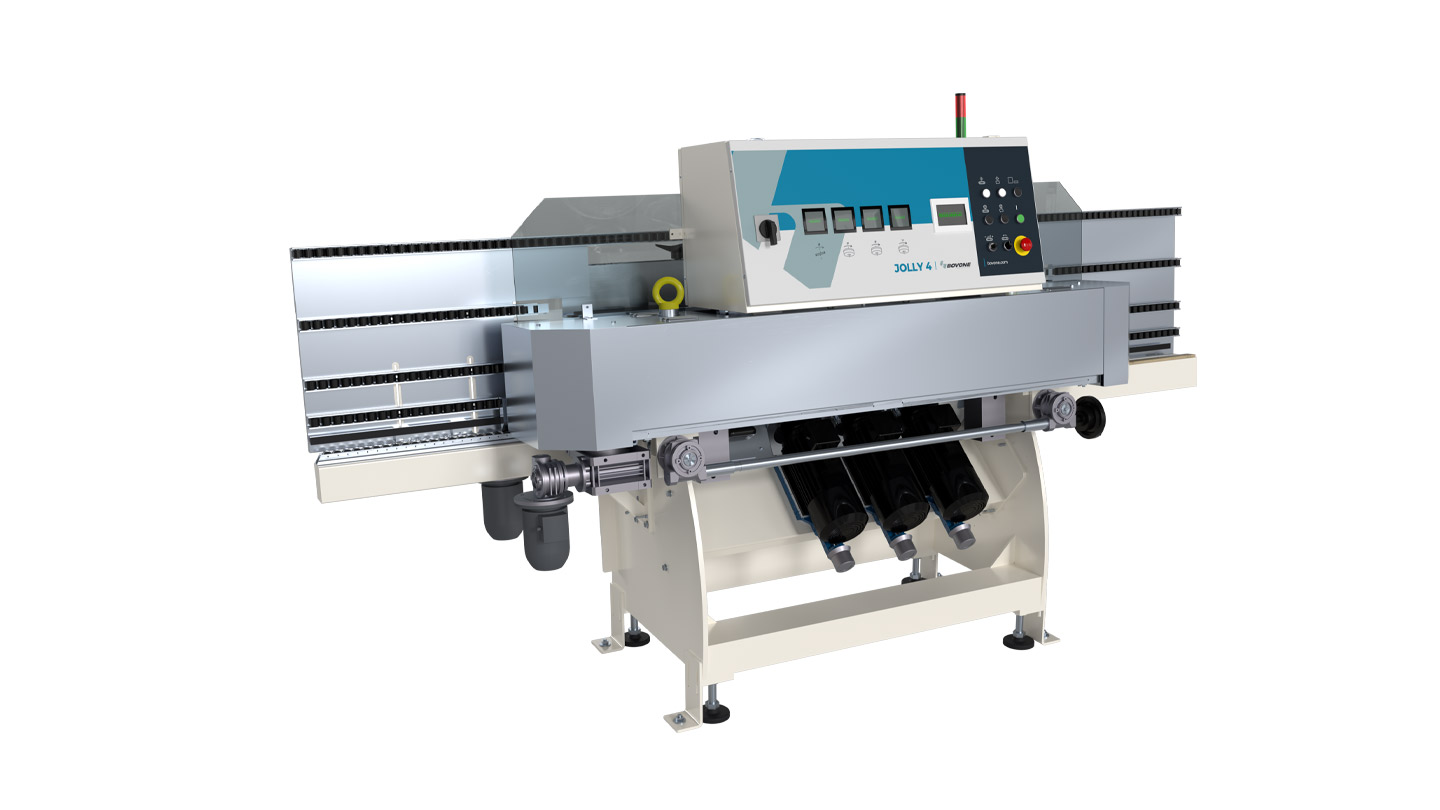

Jolly 4 is a fast, reliable machine that guarantees maximum precision in 45° grinding. The design and construction of the machine are oriented towards maximum ease of use, sturdiness and reliability.

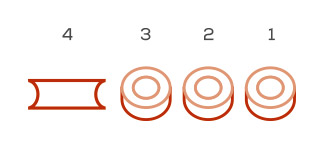

The machine works with 4 diamond wheels: the first three are in a fixed position (variable angle from 45° to 47°) for the inclined thread and the fourth peripherical wheel for the execution in a single pass of the flat edge or the edge radius.
Features
| SPEED [m/min] | 0.35 - 5.4 |
| ARRIS WIDTH [mm] | - |
| MITER ANGLE | 45° - 47° |
| MINIMUN SIZE [mm] | fino a 12 mm 30 x 350 1 edge 45° 40 x 350 2 edge 45° da 12 mm a 20 mm 40x350 1 edge 45° 55x350 1 edge 45° 60x350 2 edge 45° 75 x 350 2 edge 45° da 20 mm a 30 mm 55x350 1 edge 45° 90 x 350 2 edge 45° |
| THICKNESS [mm] | 3 - 30 |
| ELECTRICAL POWER 380V-400V 50Hz | 12 kW - 6,5A |
| DIMENSIONS LxWxH [mm] | 3195 1060 1690 |
| WEIGHT [Kg] | 1700 |
| WORKING HEIGHT [mm] | 825 ±20 |
Jolly 4
The 45° edge grinding machine. The ideal machine for preparing edges that must be joined by gluing.
Advantages and reasons for choosing the STRAIGHT-LINE GRINDING MACHINES FOR FLAT EDGE PROCESSING, THICKNESS CALIBRATION AND 45° GRINDING
SAFE INVESTMENT OVER TIME
Relying on Bovone technology means securing the productivity of your company. A company that has been developing and manufacturing technologies for edge processing for over sixty years. Reliable machines made to last longer than any other machine. A prompt and qualified service guarantees an after-sales service of the highest level. Both large companies and small workshops rely on Bovone.
CUTTING-EDGE SOLUTIONS
The competence and the great know-how developed in the construction of technologies for edge processing make Bovone edging machines real technological reference points: innovative construction solutions, top quality materials used and important and continuous investments in research and development.
SPEED AND FINISH
The entire range of Bovone edging machines guarantees perfect finishes, high and continuous speed for a very high and constant productivity.
