Calibrated kitchen tops with 45° cut
Automatic variable angle straight-line grinding machine for simultaneous processing of flat and inclined edge with thickness calibration and continuous and discontinuous arrises. The multi-functionality of the machine gives a great advantage to the customer.

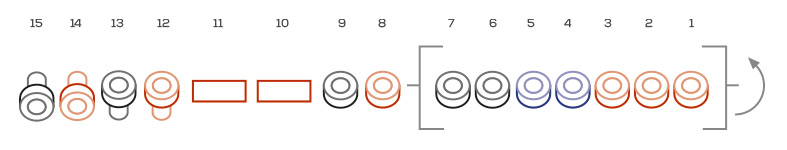

The wheel configuration of this grinding machine gives it a high functionality:
flat or inclined edge grinding, fillet machining and two wheels in the last position specifically dedicated to the calibration of the flatness of the back of the plate. This functionality gives a great advantage in terms of production optimization in the realization of monolithic kitchen tops.
Being able to perform all these operations in a single step reduces production times and protects customers from the risks associated with handling the pieces.The design and construction features of this machine are aimed at achieving great performance in terms of grinding and polishing of flat edge, inclined edge and threads and the calibration of the thickness of the piece.
Technical features
| SPEED [m/min] | ARRIS WIDTH [mm] | MITER ANGLE | MINIMUN SIZE [mm] | THICKNESS [mm] | ELECTRICAL POWER 380V-400V 50Hz | DIMENSIONS LxWxH [mm] | WEIGHT [Kg] | WORKING HEIGHT [mm] |
|---|---|---|---|---|---|---|---|---|
| 0.35 - 5.4 | max 5 | 0° ÷ 45° | up to 19 mm 85x85 / 0° 110x110 / 22.5° 140x140 / 45° over 19 mm 85x85 / 0° 110x110 / 22.5° 140x140 / 45° | 3 - 50 | 43 kW - 99A | 9600 1200 2900 | 6800 | 895 |
