Automatic straight-line edging machine with variable angle for the simultaneous processing of flat or inclined edge, calibration and edge radius. The best solution for the making of kitchen tops.
The Stonedge 15/45 Radius is the ideal tool for variable angle edge machining. Highly suitable for processing at 45 ° for the preparation of the edge of the functional slab for subsequent gluing.

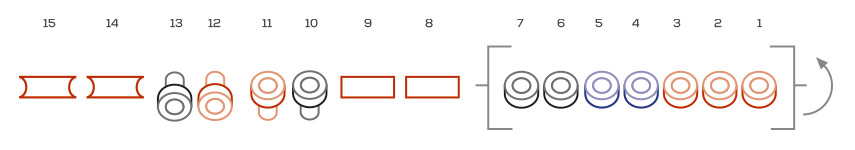

The configuration of the peripherical wheels dedicated to the edge radius increases the functionality of this edger in particular in the production of kitchen tops.
Features
| SPEED [m/min] | 0.35 - 5.4 |
| ARRIS WIDTH [mm] | max 5 |
| MITER ANGLE | 0° ÷ 45° |
| MINIMUN SIZE [mm] | fino a 19 mm 85x85 / 0° 110x110 / 22.5° 140x140 / 45° oltre 19 mm 110x110 / 0° 140x140 / 22.5° 160x160 / 45° |
| THICKNESS [mm] | 3 - 50 |
| ELECTRICAL POWER 380V-400V 50Hz | 43 kW - 99A |
| DIMENSIONS LxWxH [mm] | 10100 1200 2900 |
| WEIGHT [Kg] | 7350 |
| WORKING HEIGHT [mm] | 895 |

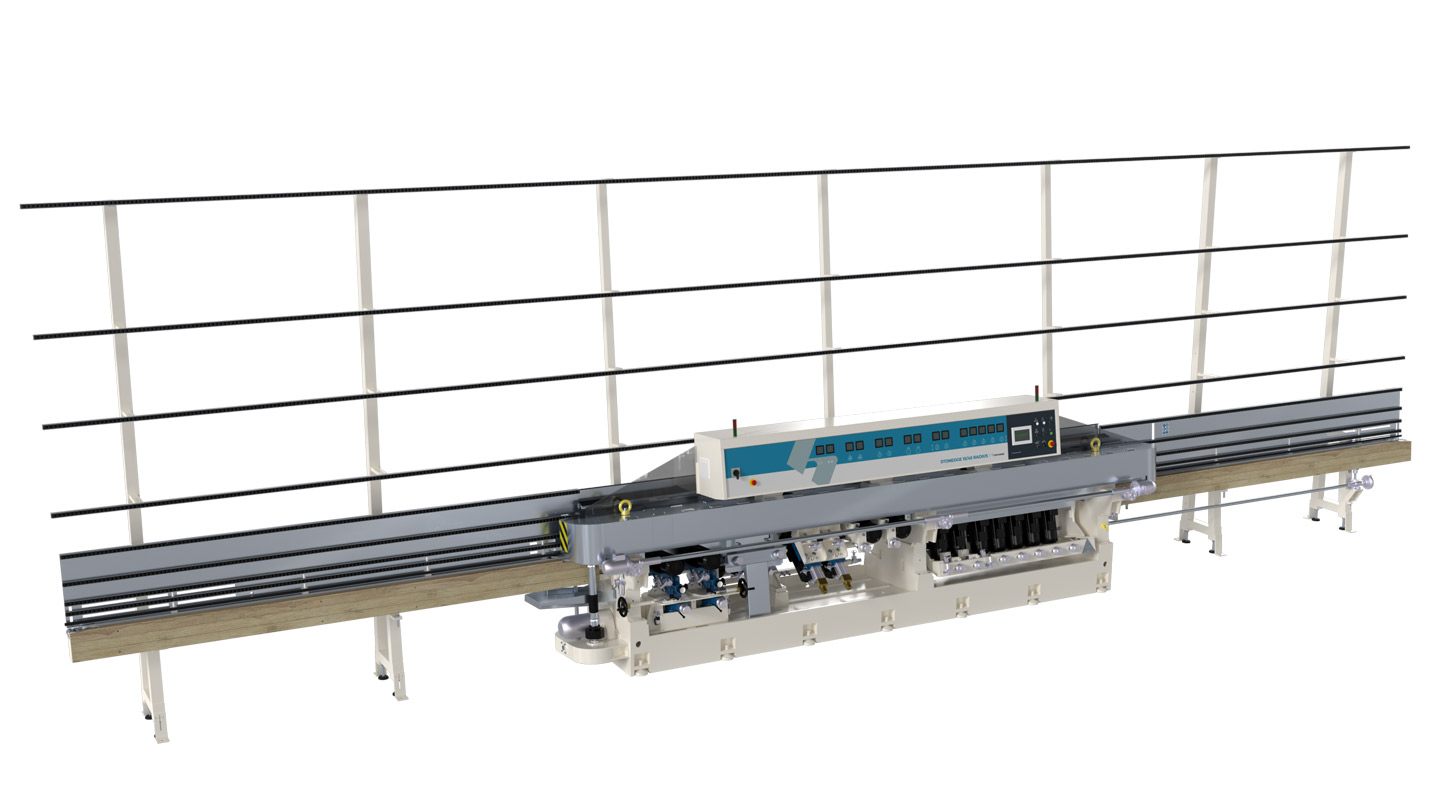

Stone vertical polishing machine Stonedge 15/45 Radius
Perfect for kitchen tops
Advantages and reasons for choosing the STRAIGHT-LINE GRINDING MACHINES FOR FLAT EDGE PROCESSING, THICKNESS CALIBRATION AND 45° GRINDING
SAFE INVESTMENT OVER TIME
Relying on Bovone technology means securing the productivity of your company. A company that has been developing and manufacturing technologies for edge processing for over sixty years. Reliable machines made to last longer than any other machine. A prompt and qualified service guarantees an after-sales service of the highest level. Both large companies and small workshops rely on Bovone.
CUTTING-EDGE SOLUTIONS
The competence and the great know-how developed in the construction of technologies for edge processing make Bovone edging machines real technological reference points: innovative construction solutions, top quality materials used and important and continuous investments in research and development.
SPEED AND FINISH
The entire range of Bovone edging machines guarantees perfect finishes, high and continuous speed for a very high and constant productivity.
