1.3 - 1.6 - 2.2 - 2.6 - 3.3
The Bovone series of vertical washing machines. Sturdiness, performance and high integration in complete lines.

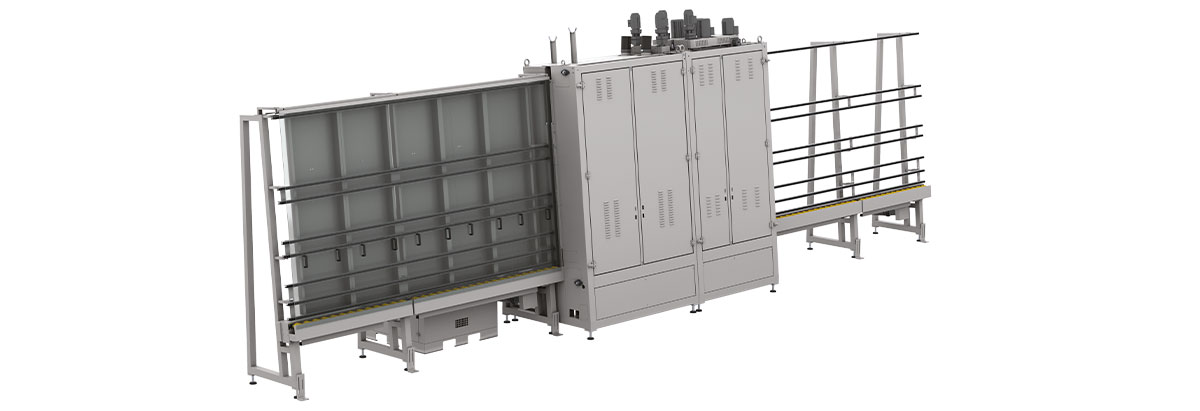

Bovone’s BVR vertical washing machines, made entirely of stainless steel, wash and dry slabs with different thicknesses and heights up to 3,300 mm. The washing brushes and drying heads are positioned inside the machine body. The rear case is fixed while the front one can be movable to adapt to different glass thicknesses.
The washing phase consists of three phases: pre-wash, wash and rinse.
All ramps are removable and equipped with ‘Quick Lock’ nozzles to facilitate maintenance operations.
The internal sectors of the cylindrical brushes are designed and built to minimize the passages, thus avoiding contamination. The different washing sections are separate and have different drains.
The configuration of the large cold water tank, with filters and stainless steel pump, positioned on the rear of the machine, makes maintenance as easy as possible thanks to wheels and quick couplings for the cam lock type hoses and electric plug for the pump.
Drying takes place through diagonally inclined air knives and powered by a soundproof fan equipped with filters and adjustable distributor. The air knives are made of heavy gauge stainless steel with the lips machined to reduce noise and increase performance.
The inlet and outlet conveyors consist of conveyor rollers with racks. The frame is made of steel protected by two coats of epoxy paint. The sheet rests on motorized spindles covered with special anti-cut rubber.
The washing machine is equipped with an operator panel through which to manage the various processing parameters: the electromechanical components are of the highest quality. All Bovone washing machines integrate easily with other machines within modular lines.
Technical features
| MODEL | SPEED [m/min] | MINIMUN GLASS SIZE [mm] | MAX.GLASS SIZE [mm] | GLASS THICKNESS [mm] | ELECTRICAL POWER [kW] | BRUSHES | AIR-KNIVES |
|---|---|---|---|---|---|---|---|
| BVR 1.3 | 0,4÷7 | 70 x 500 (opt. 70 x 350) | 1300 | 3÷30 | 16÷23 | 2 | 1 |
| BVR 1.6 | 0,4÷7 | 70 x 500 (opt. 70 x 350) | 1600 | 3÷30 (opt.50) | 19÷27 | 2 | 1 |
| BVR 2.2 | 0,4÷7 | 70 x 500 (opt. 70 x 350) | 2200 | 3÷30 (opt.50) | 21÷40 | 2 - 3 | 1 |
| BVR 2.6 | 0,4÷7 | 70 x 500 (opt. 70 x 350) | 2600 | 3÷30 | 23÷43 | 2 | 1 |
| BVR 3.3 | 0,4÷7 | 70 x 500 (opt. 70 x 350) | 3300 | 3÷30 | 37÷60 | 2 | 1 |
